Product Summary
The JANTX2N2905 is a PNP switching silicon transistor.
Parametrics
JANTX2N2905 absolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 60 Vdc; (2)Collector-Base Voltage, VCBO: 60 Vdc; (3)Emitter-Base Voltage, VEBO: 5.0 Vdc; (4)Collector Current, IC: 600 mAdc; (5)Total Power Dissipation, PT: 0.6W at TA=25℃; 3.0W at TC=25℃; (6)Operating & Storage Junction Temp. Range,TJ, Tstg: -65 to +200℃.
Features
JANTX2N2905 features: (1)Meets MIL-S-19500/290; (2)Collector-Base Voltage 60V; (3)Collector Current: 600 mA; (4)Fast Switching 345 nS.

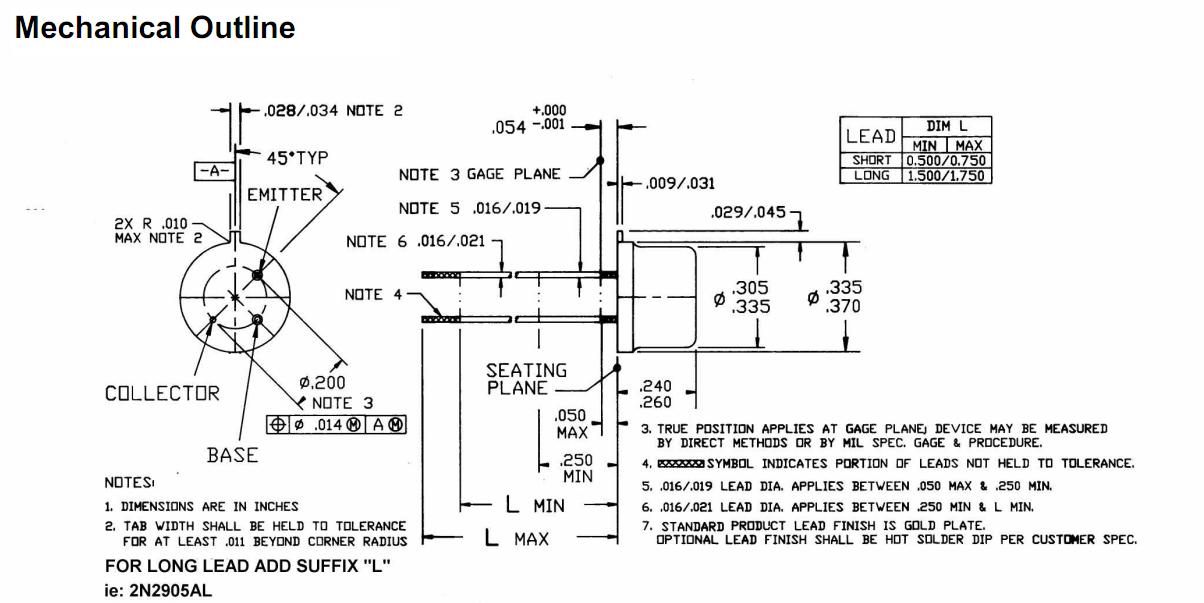

Diagrams
