Product Summary

The TPSD337K006R0045 is a Low ESR.

Parametrics

TPSD337K006R0045 absolute maximum ratings: (1)Capacitance Range: 0.15 to 1500μF; (2)Capacitance Tolerance: ±10%; ±20%; (3)Rated Voltage (VR) ≤ +85℃: 2.5V; (4)Category Voltage (VC) ≤ +125℃: 1.7V; (5)Surge Voltage (VS) ≤ +85℃: 3.3V; (6)Surge Voltage (VS) ≤ +125℃: 2.20V; (7)Temperature Range: -55 to +125℃; (8)Environmental Classification: 55/125/56 (IEC 68-2); (9)Reliability: 1% per 1000 hours at 85℃.

Features

TPSD337K006R0045 features: (1)Low ESR series of robust Mn02 solid electrolyte capacitors; (2)CV range: 0.15-1500μF / 2.5-50V; (3)14 case sizes available; (4)Power supply applications.

Diagrams

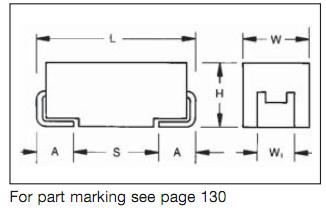

TPSD337K006R0045 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

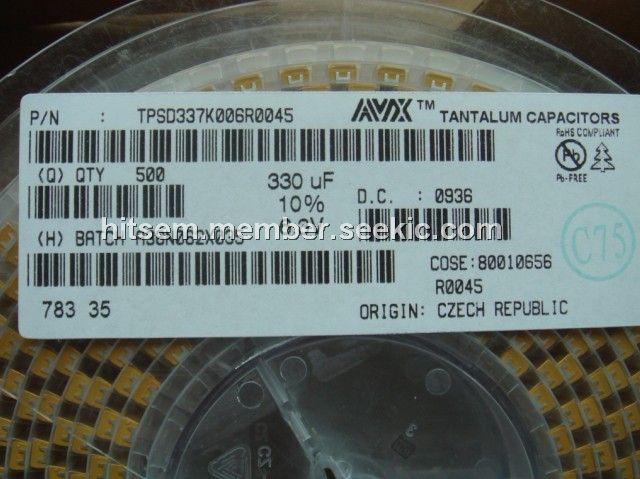

TPSD337K006R0045
TPSD337K006R0045
AVX
Tantalum Capacitors - Solid SMD 330UF 6V 7343-31
Data Sheet
0-1: $4.82
1-10: $4.51
10-100: $3.89
100-500: $2.14
