Product Summary

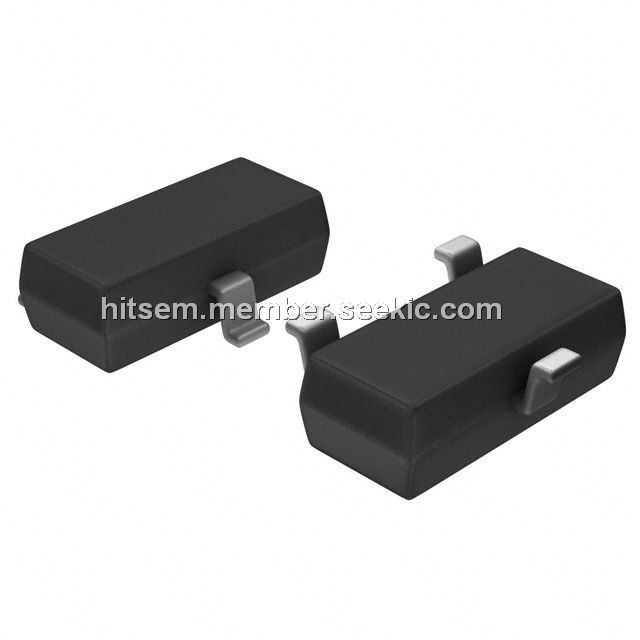

The BB207 is a variable capacitance double diode with a common cathode, fabricated in silicon planar technology, and encapsulated in the SOT23 small plastic SMD package. The application of the BB207 is electronic tuning in FM-radio.
Parametrics
BB207 absolute maximum ratings: (1)continuous reverse voltage: 15V; (2)continuous forward current: 20 mA; (3)storage temperature:-55℃ to +150℃; (4)operating junction temperature:-55℃ to +125℃.
Features
BB207 features: (1)Excellent linearity; (2)Cd(1V): 81 pF; Cd(7.5V): 27.6 pF; (3)Cd(1V) to Cd(7.5V) ratio: min. 2.6; (4)Very low series resistance; (5)Small SMD plastic package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BB207 T/R |
NXP Semiconductors |
Varactor Diodes TAPE7 DIO-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||
|
BB207,215 |
NXP Semiconductors |
Varactor Diodes TAPE7 DIO-RFSS |
Data Sheet |
|
|
||||||||||||
|
BB207,235 |
NXP Semiconductors |
Varactor Diodes TAPE7 DIO-RFSS |
Data Sheet |
|
|
||||||||||||
|
BB207 /T3 |
NXP Semiconductors |
Rectifiers TAPE7 DIO-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BB207 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
