Product Summary

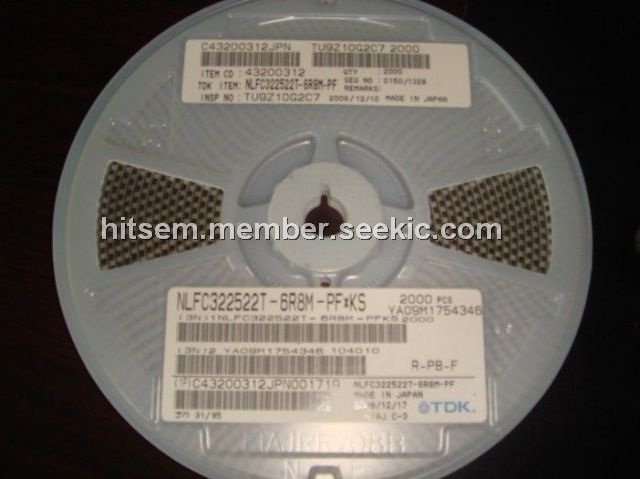

The NLFC322522T-6R8M-PF is an inductor for power line. It is suitable for Personal computers, hard disk drives, and other electronic equipment.

Parametrics

NLFC322522T-6R8M-PF absolute maximum ratings: (1)operating temperature range: -20 to 80℃; (2)storage temperature range: -40 to 85℃; (3)inductance value: 6.8uH; (4)inductance tolerance: ±20%.

Features

NLFC322522T-6R8M-PF features: (1)The NLFC series features magnetic shielding and is recommended for power supply line applications; (2)They are available in 4 form factors ranging from 2016 to 4532.

Diagrams

NLFC322522T-6R8M-PF shapes and dimensions
