Product Summary

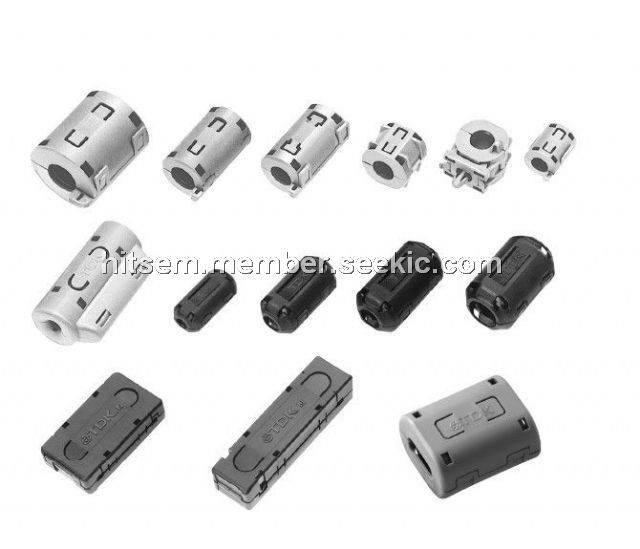

The ZCAT3035-1330 is a clamp filter for cable. The applications of the device include Personal computers, word processors, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video games, copiers and facsimiles.

Parametrics

ZCAT3035-1330 absolute maximum ratings: (1)Operating temperature range: –40 to +85℃; (2)Temperature range for engagement work: 0 to +50℃; (3)impedance: 80Ω min at 10 to 100MHz; 150Ω at 100 to 500MHz.

Features

ZCAT3035-1330 features: (1)Unique plastic case ensures simple, convenient installation and includes a self-holding mechanism to prevent slippage on cables; (2)Ferrite core provides excellent absorption of high-frequency EMC; (3)Highly effective as countermeasure against common mode EMC without adverse effect on signal quality; (4)Large core size prevents saturation during large signal surges.

Diagrams

ZCAT3035-1330 shapes and dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ZCAT3035-1330
ZCAT3035-1330

TDK

EMI/RFI Suppressors & Ferrites Round 13mm Cable Clamp Filter

Data Sheet

0-1: $1.48
1-10: $1.20
10-50: $1.06
50-100: $0.98
ZCAT3035-1330-BK
ZCAT3035-1330-BK

TDK

EMI/RFI Suppressors & Ferrites Round 13mm Black Cable Clamp Filter

Data Sheet

0-1: $2.65
1-10: $2.19
10-50: $1.88
50-100: $1.69
