Product Summary

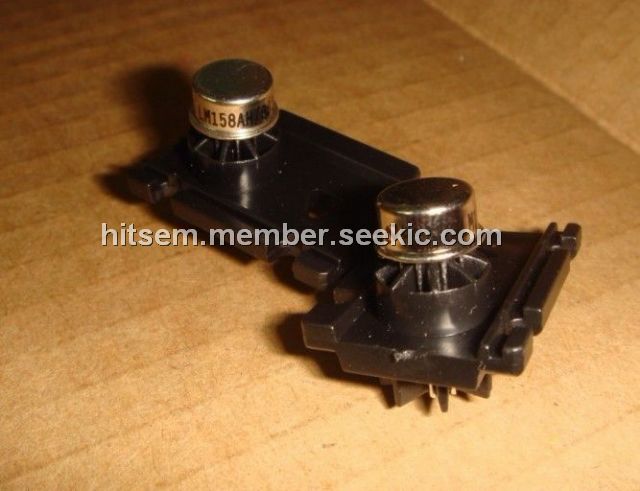

The LM158AH/883 Operational Amplifier consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application of the LM158AH/883 include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems.
Parametrics
LM158AH/883 absolute maximum ratings: (1)Supply Voltage, V+: 32V; (2)Differential Input Voltage: 32V; (3)Input Voltage: -0.3V to +32V; (4)Power Dissipation: 830 mW; (5)Output Short-Circuit to GND (One Amplifier): V+ ≤ 15V and TA = 25℃ Continuous Continuous; (6)Input Current (VIN < -0.3V): 50 mA; (7)Operating Temperature Range: 0 to +70℃; (8)Storage Temperature Range: -65 to +150℃; (9)Lead Temperature: 260℃.
Features
LM158AH/883 features: (1)Internally frequency compensated for unity gain; (2)Large dc voltage gain: 100 dB; (3)Wide bandwidth (unity gain): 1 MHz (temperature compensated); (4)Wide power supply range: Single supply: 3V to 32V; or dual supplies: ±1.5V to ±16V; (5)Very low supply current drain (500 μA)—essentially independent of supply voltage; (6)Low input offset voltage: 2 mV; (7)Input common-mode voltage range includes ground; (8)Differential input voltage range equal to the power supply voltage; (9)Large output voltage swing: 0V to V+ - 1.5V.

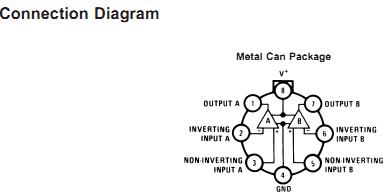

Diagrams
 |
