Product Summary

The UES705 is a high efficiency rectifier. The UES705 is specifically designed for operation in power switching circuits operating at frequency of at least 20kHz. The low thermal resistance and forward voltage drop of the device allows the user to replace DO-5 size devices in many applicaitons.

Parametrics

UES705 absolute maximum ratings: (1)peak inverse voltage: 300V; (2)average DC output current, ID@Tc=100℃: 20A; (3)surge current, 8.3ms: 300A; (4)thermal resistance, junction to case: 1.5℃/W; (5)operating and storage tempeature range: -55 to 160℃.

Features

UES705 features: (1)very low forward voltage (1.15V); (2)very fast recovery times (50ns); (3)low thermal resistance; (4)high surge capability; (5)mechanically rugged; (6)both polarities available.

Diagrams

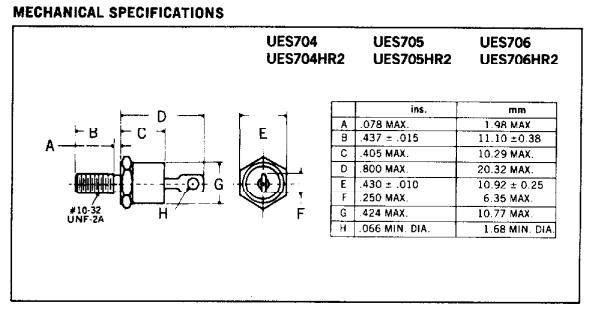

UES705 dimensions
