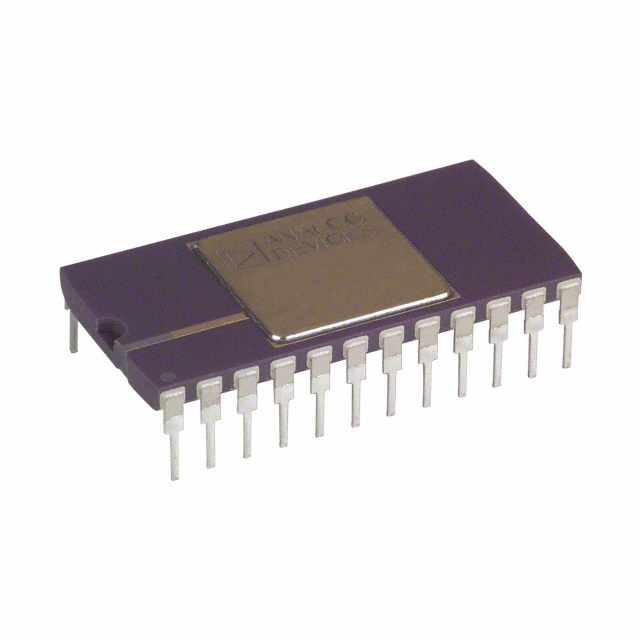

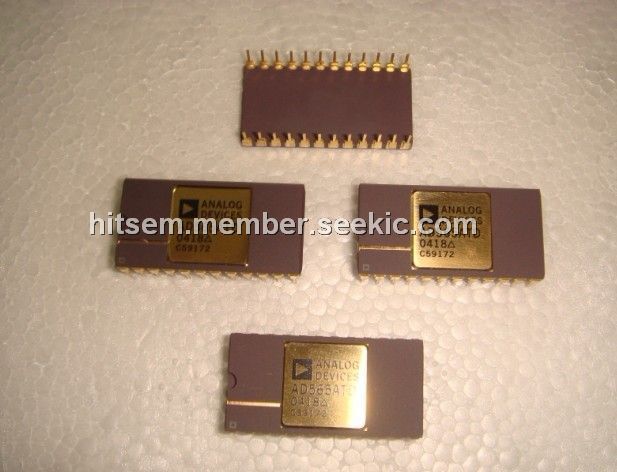

AD565ATD

12-bit digital-to-analog converter, 24-CDIP, 250ns, 0 V to +18 V, 1000 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~15.00

PartNumber:: AD565ATD

Brand:: Analog Devices - ADI | Pack: CDIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ansion's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-15

From Other Seller

Part Number:AD565ATD
US $10.00 - 15.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

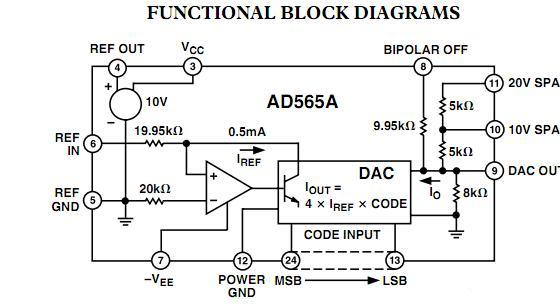

The AD565ATD is a fast 12-bit digital-to-analog converter that incorporates the latest advances in analog circuit design to achieve high speeds at low cost. The AD565ATD uses 12 precision, high-speed bipolar current-steering switches, control amplifier and a laser-trimmed thin-film resistor network to produce a very fast, high accuracy analog output current. The AD565ATD also includes a buried Zener reference that features low-noise, long-term stability and temperature drift characteristics comparable to the best discrete reference diodes.

Parametrics

AD565ATD absolute maximum ratings: (1)VCC to Power Ground: 0 V to +18 V; (2)VEE to Power Ground: 0 V to –18 V; (3)Voltage on DAC Output (Pin 9): –3 V to +12 V; (4)Digital Inputs (Pins 13 to 24) to Power Ground: –1.0 V to +7.0 V; (5)REF IN to Reference Ground: ±12 V; (6)Bipolar Offset to Reference Ground: ±12 V; (7)10 V Span R to Reference Ground: ±12 V; (8)20 V Span R to Reference Ground: ±24 V; (9)REF OUT: Indefinite Short to Power Ground Momentary Short to VCC; (10)Power Dissipation: 1000 mW.

Features

AD565ATD features: (1)Single Chip Construction; (2)Very High-Speed Settling to 1/2 LSB: 250 ns max; (3)Full-Scale Switching Time: 30 ns; (4)Guaranteed for Operation with -12 V Supplies; (5)Linearity Guaranteed Over Temperature: 1/2 LSB max (K, T Grades); (6)Monotonicity Guaranteed Over Temperature; (7)Low Power: 180 mW max; (8)Use with On-Board High-Stability Reference; (9)Low Cost; (10)MlL-STD-883-Compliant Versions Available.
