Product Summary

The TEESVA0J156M8R is a capacitor.

Parametrics

TEESVA0J156M8R absolute maximum ratings: (1)Operating temperature: -55 to 125℃; (2)Rated voltage (V.dc): 2.5V; (3)Derated voltage (V.dc): 1.6V; (4)Surge voltage (V.dc): 3.3V; (5)Capacitance: 0.47 to 680μF; (6)Capacitance tolerance: ±20% or ±10%; (7)DC Leakage Current (L.C): 0.01CV(μA) or 0.5 μA , whichever is greater.

Features

TEESVA0J156M8R features: (1)Lead-free Type. In conformity to RoHS; (2)Offer a range of small, high-capacity models; (3)Succeed to the latest technology plus outstanding peformance.

Diagrams

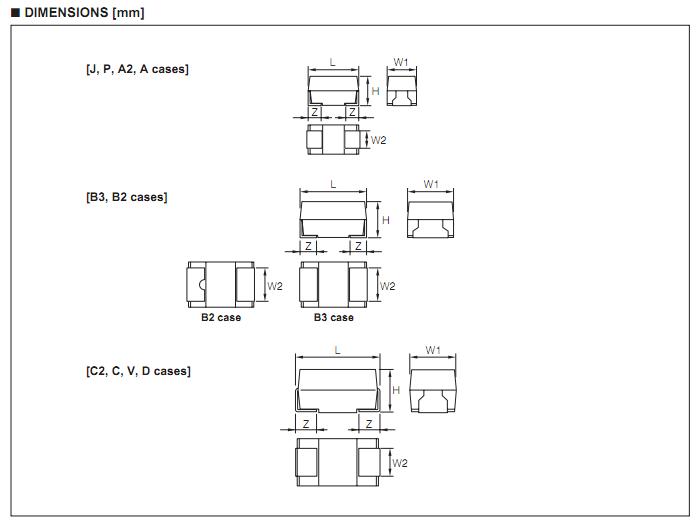

TEESVA0J156M8R dimensions
