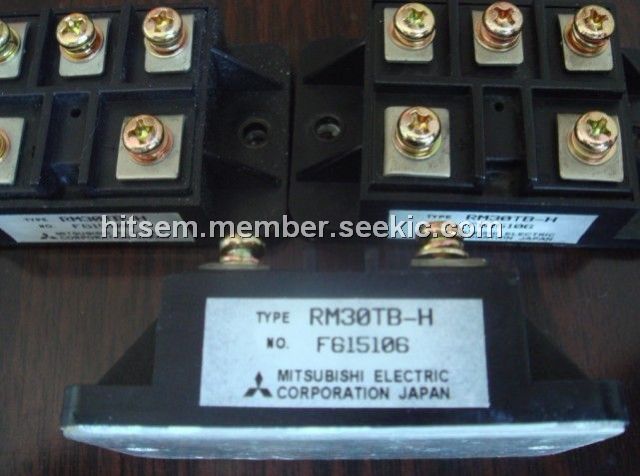

Product Summary

The RM30TB-H is a Diode Module. It is a medium power general use insulated type. The device is used in AC motor controllers, DC motor controllers, Battery DC power supplies, DC power supplies for control panels, and other general DC power equipment.

Parametrics

RM30TB-H absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 800V; (2)VRSM Non-repetitive peak reverse voltage: 960V; (3)Ea Recommended AC input voltage: 220V.

Features

RM30TB-H features: (1)IO DC output current: 60A; (2)VRRM Repetitive peak reverse voltage: 400/800V; (3)3 phase bridge; (4)Insulated Type; (5)UL Recognized.

Diagrams

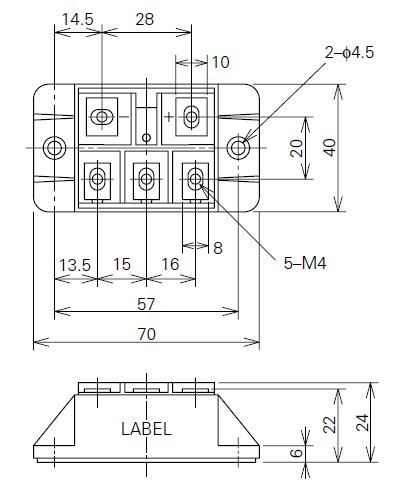

RM30TB-H block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RM30TB-H
RM30TB-H

Other


Data Sheet

Negotiable
