Product Summary

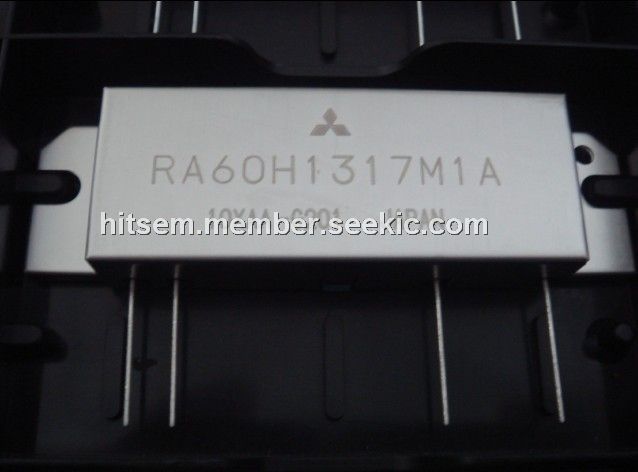

The RA60H1317M1A is a 60-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operates in the 136- to 174-MHz range. The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The RA60H1317M1A output power and drain current increase as the gate voltage increases. With a gate voltage around 4V (minimum), output power and drain current increases substantially. The nominal output power becomes available at 4.5V (typical) and 5V (maximum). At VGG=5V, the typical gate current is 1 mA.

Parametrics

RA60H1317M1A absolute maximum ratings: (1)VDD, Drain Voltage: 17V; (2)VGG, Gate Voltage: 5.5V; (3)Pin Input Power: 100mW; (4)Pout, Output Power: 80W; (5)Tcase(OP), Operation Case Temperature Range: -30 to 100℃; (6)Tstg, Storage Temperature Range: -40 to 110℃.

Features

RA60H1317M1A features: (1)Enhancement-Mode MOSFET Transistors (IDD=0 @ VDD=12.5V, VGG=0V); (2)Pout>60W, ηT>45% @ VDD=12.5V, VGG=5V, Pin=50mW; (3)Broadband Frequency Range: 136-174MHz; (4)Low-Power Control Current IGG=1mA (typ) at VGG=5V; (5)Module Size: 67 × 18 × 9.9 mm; (6)Linear operation is possible by setting the quiescent drain current with the gate voltage and controlling the output power with the input power.

Diagrams

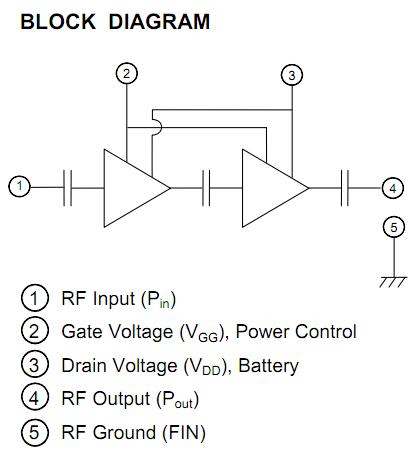

RA60H1317M1A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RA60H1317M1A
RA60H1317M1A

Other


Data Sheet

Negotiable
