Product Summary
The AT45DB642D-TU is a 2.7-volt, dual-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The device supports RapidS serial interface and Rapid8 8-bit interface. To allow for simple in-system reprogrammability, the AT45DB642D-TU does not require high input voltages for programming. The device operates from a single power supply, 2.7V to 3.6V, for both the program and read operations.
Parametrics
AT45DB642D-TU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6 V to +6.25 V; (4)All Output Voltages with Respect to Ground: -0.6 V to VCC + 0.6 V.
Features
AT45DB642D-TU features: (1)Single 2.7V - 3.6V Supply; (2)User Configurable Page Size: 1024 Bytes per Page or 1056 Bytes per Page; (3)Page Program Operation: Intelligent Programming Operation and 8192 Pages (1024/1056 Bytes/Page) Main Memory; (4)Two SRAM Data Buffers (1024/1056 Bytes): Allows Receiving of Data while Reprogramming the Flash Array; (5)Continuous Read Capability through Entire Array: Ideal for Code Shadowing Applications; (6)Hardware and Software Data Protection Features: Individual Sector; (7)JEDEC Standard Manufacturer and Device ID Read; (8)100,000 Program/Erase Cycles Per Page Minimum; (9)Data Retention – 20 Years;(10)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

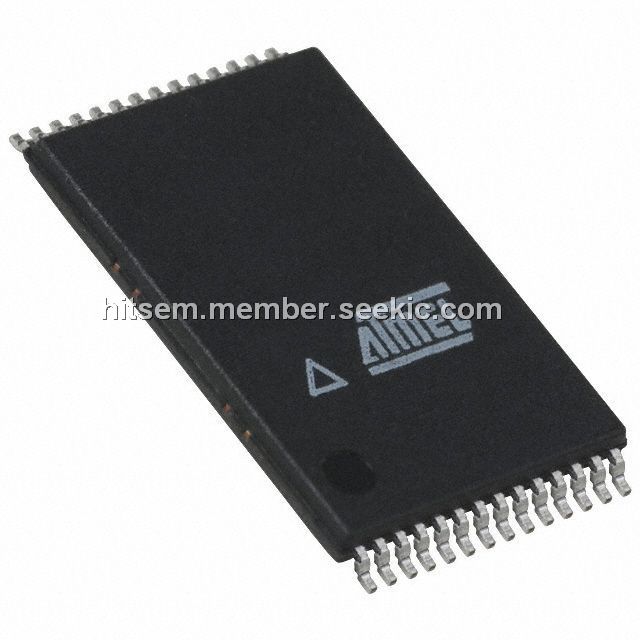

 AT45DB642D-TU |
Atmel |
Flash 64M 28 I/O Pin Ser Rapid8 1056B 2.7V |
Data Sheet |
|
|
||||||||||||
