Product Summary

The IXLF19N250A is a High Voltage IGBT. The applications of the device include switched mode power supplies, DC-DC converters, resonant converters, laser generators, xray generators and discharge circuits.

Parametrics

IXLF19N250A absolute maximum ratings: (1)VCES: 2500 V; (2)VGES: ± 20 V; (3)IC25: 32 A; (4)IC90: 19 A; (5)ICM: 70 A; (6)VCEK: 1200 V; (7)Ptot: 250 W.

Features

IXLF19N250A features: (1)High Voltage IGBT: substitute for high voltage MOSFETs with significantly lower voltage drop and comparable switching speed; substitute for high voltage thyristors with voltage control of turn on & turn off; substitute for electromechanical trigger and discharge relays; (2)ISOPLUS i4-PAC: high voltage package, isolated back surface, enlarged creepage towards heatsink, enlarged creepage between high voltage pins, application friendly pinout, high reliability, industry standard outline, UL registered E72873.

Diagrams

IXLF19N250A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

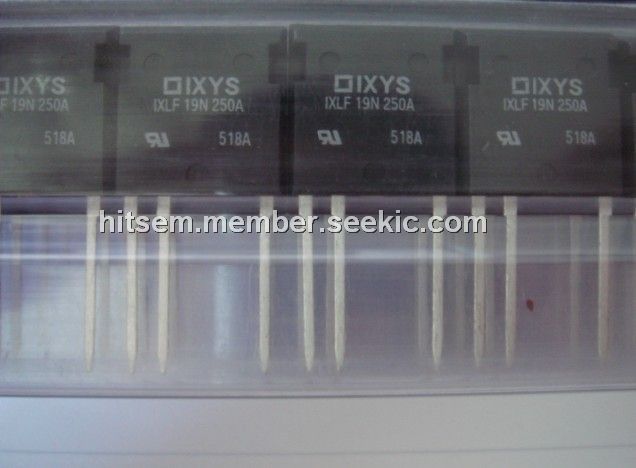

IXLF19N250A
IXLF19N250A

Ixys

IGBT Transistors High Voltage IGBT 2500V; 19A

Data Sheet

Negotiable
