Product Summary

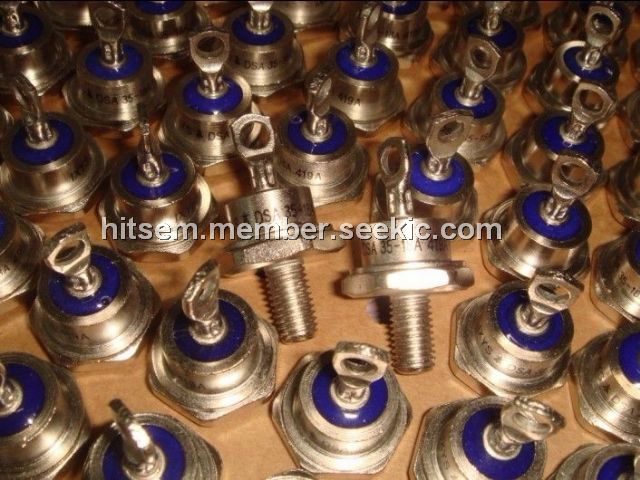

The DSA35-18A is an avalanche diode. Applications include: High power rectifiers, Field supply for DC motors, Power supplies.
Parametrics
DSA35-18A absolute maximum ratings: (1)IF(RMS): 80 A; (2)IF(AVM): 49 A; (3)PRSM: 11 kW; (4)IFSM: 650 A; (5)I2t: 2100 A2s; (6)TVJ: -40 to +180 ℃; (7)TVJM: 180 ℃; (8)Tstg: -40 to +180 ℃; (9)Md: 4.5-5.5 Nm; (10)Weight: 15 g.
Features
DSA35-18A features: (1)International standard package, JEDEC DO-203 AB (DO-5); (2)Planar glassivated chips.

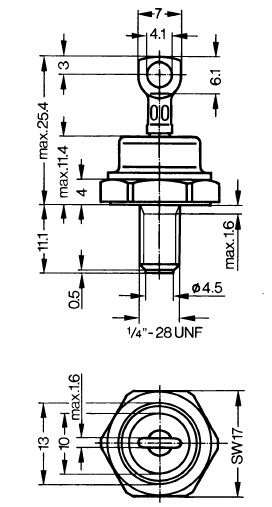

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DSA35-18A |
Ixys |
Rectifiers 35 Amps 1800V |
Data Sheet |
Negotiable |
|
||||||||||||
