Product Summary
The BQ2060A is a SBS-Compliant Gas Gauge IC for battery pack or in-system installation maintains an accurate record of available charge in rechargeable batteries. The BQ2060A monitor capacity and other critical battery parameters for NiCd, NiMH, Li-Ion, and lead-acid chemistries. The BQ2060A uses a V-to-F converter with automatic offset error correction for charge and discharge counting. For voltage, temperature, and current reporting, the device uses an A-to-D converter. The onboard ADC also monitors individual cell voltages in a Li-Ion battery pack and allows the BQ2060A to generate control signals that may be used in conjunction with a pack supervisor to enhance pack safety.
Parametrics
BQ2060A absolute maximum ratings: (1)VCC—Supply voltage Relative to VSS: -0.3 to +6.0 V; (2)VIN–All other pins Relative to VSS: -0.3 to +6.0 V; (3)TOPR Operating temperature: -20 to +70 ℃.
Features
BQ2060A features: (1)Provides accurate measurement of available charge in NiCd, NiMH, Li-Ion, and lead-acid batteries; (2)Supports SBS Smart Battery Data Specification v1.1; (3)Supports the 2-wire SMBus v1.1 interface with PEC or 1-wire HDQ16; (4)Reports individual cell voltages; (5)Monitors and provides control to charge and discharge FETs in Li-Ion protection circuit; (6)Provides 15-bit resolution for voltage, temperature, and current measurements; (7)Measures charge flow using a V-to-F converter with offset of less than 16μV after calibration; (8)Consumes less than 0.5mW operating; (9)Drives a 4- or 5-segment LED display for remaining capacity indication; (10)28-pin 150-mil SSOP.

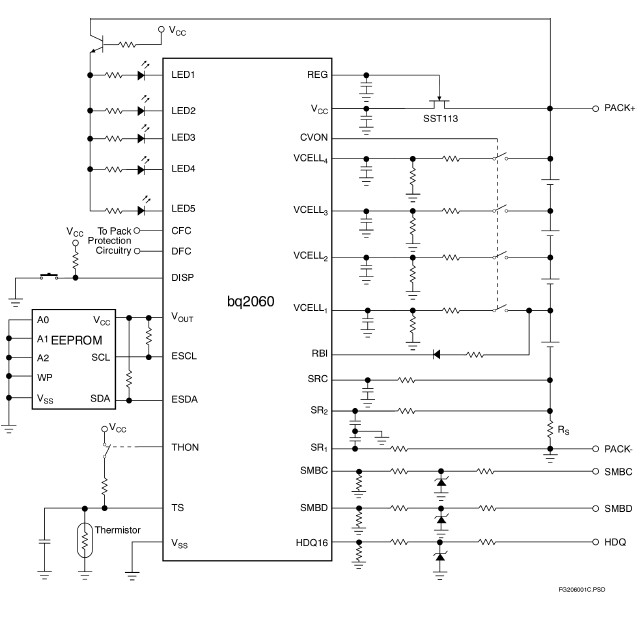

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
bq2060A |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||

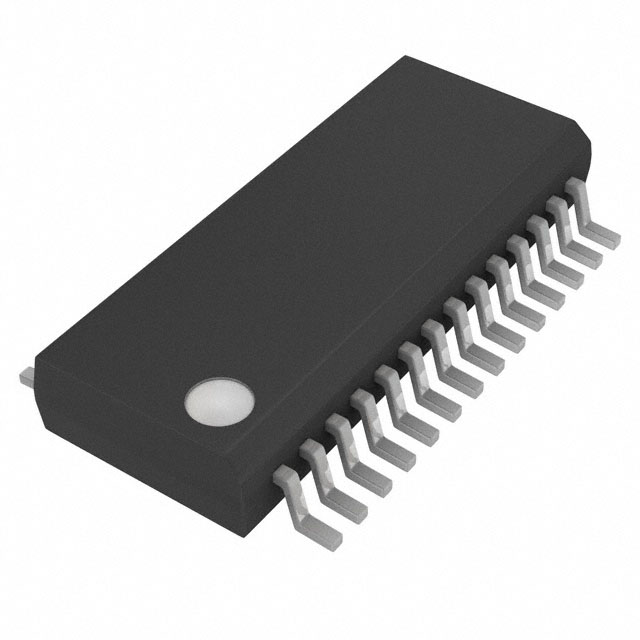

BQ2060ADBQ |
Texas Instruments |
Battery Management SBS V1.1 Compliant GG IC |
Data Sheet |
Negotiable |
|
|||||||||||||
BQ2060A-E619DBQ |
Texas Instruments |
Battery Management Multi-Chem SBS 1.1 Compliant Gas Gauge |
Data Sheet |
|
|
|||||||||||||
BQ2060ADBQR |
Texas Instruments |
Battery Management SBS V1.1 Compliant |
Data Sheet |
Negotiable |
|
|||||||||||||
BQ2060ADBQRG4 |
Texas Instruments |
Battery Management SBS V1.1 Compliant |
Data Sheet |
Negotiable |
|
|||||||||||||
BQ2060ADBQG4 |
Texas Instruments |
Battery Management SBS V1.1 Compliant GG IC |
Data Sheet |
Negotiable |
|
|||||||||||||
BQ2060AEVM-002 |
Texas Instruments |
Power Management IC Development Tools bq2060A-002 Eval Kit for NiMH Cells |
Data Sheet |
|
|
|||||||||||||
BQ2060AEVM-001 |
Texas Instruments |
Power Management IC Development Tools bq2060A-001 Eval Kit for LiIon Cells |
Data Sheet |
|
|
