Product Summary

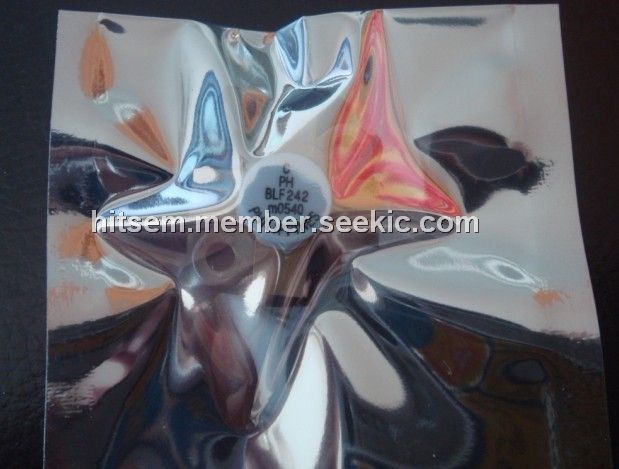

The BLF242 is a Silicon N-channel enhancement mode vertical D-MOS transistor designed for professional transmitter applications in the HF/VHF frequency range. The transistor BLF242 is encapsulated in a 4-lead, SOT123 flange envelope, with a ceramic cap. All leads are isolated from the flange.

Parametrics

BLF242 absolute maximum ratings: (1)VDS drain-source voltage: - 65 V; (2)±VGS gate-source voltage: - 20 V; (3)ID DC drain current: - 1 A; (4)Ptot total power dissipation up to Tmb = 25 ℃: - 16 W; (5)Tstg storage temperature: -65 150 ℃; (6)Tj junction temperature: - 200 ℃.

Features

BLF242 features: (1)High power gain; (2)Low noise; (3)Easy power control; (4)Good thermal stability; (5)Withstands full load mismatch; (6)Gold metallization ensures excellent reliability.

Diagrams

BLF242 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BLF242
BLF242

Other


Data Sheet

Negotiable
BLF242,112
BLF242,112

NXP Semiconductors

Transistors RF MOSFET Power RF DMOS 5W HF-VHF

Data Sheet

0-1: $24.64
1-25: $22.85
25-100: $21.43
100-250: $20.00
