Product Summary

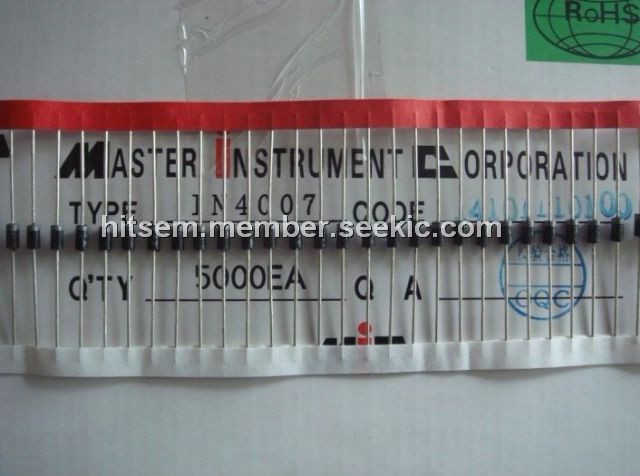

The 1N4007 is a 1.0A plastic silicon rectifier.

Parametrics

1N4007 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:1000V; (2)Maximum RMS Voltage:700V; (3)Maximum DC Blocking Voltage:1000V; (4)Maximum Average Forward Current:1.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):30A; (6)Typical thermal resistance:50℃/W; (7)Maximum Forward Voltage at 1.0A, per element:1.1V; (8)Maximum DC Reverse Current at TJ=25℃:5.0uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

1N4007 features: (1)Low forward voltage drop; (2)High current capability; (3)High reliability; (4)High surge current capability; (5)Exceeds environmental standards of MIL-S-19500/228.

Diagrams

1N4007 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1N4007
1N4007

Fairchild Semiconductor

Rectifiers Vr/1000V Io/1A

Data Sheet

0-1: $0.08
1-25: $0.08
25-100: $0.05
100-250: $0.03
1N4007/1
1N4007/1

Vishay Semiconductors

Rectifiers Vr/1000V Io/1A BULK

Data Sheet

Negotiable
1N4007/54
1N4007/54


RECTIFIER 1A 1000V DO-41

Data Sheet

Negotiable
1N4007/L
1N4007/L

Other


Data Sheet

Negotiable
1N4007_Q
1N4007_Q

Fairchild Semiconductor

Rectifiers Vr/1000V Io/1A

Data Sheet

0-1: $0.01
1-25: $0.01
25-100: $0.01
100-500: $0.01
1N4007-19
1N4007-19

Taiwan Semiconductor

Rectifiers 1A,1600V,Std SILASTIC Rect

Data Sheet

0-20000: $0.01
1N4007A
1N4007A

Other


Data Sheet

Negotiable
1N4007-B
1N4007-B

Rectron

Rectifiers Vr/1000V Io/1A BULK

Data Sheet

0-1: $0.02
1-100: $0.01
100-500: $0.01
500-1000: $0.01
