Product Summary
The T491C106K016AT is a Standard MnO2 Tantalum Surface Mount Capacitor. The T491C106K016AT, designed specifically for today’s highly automated surface mount processes and equipment, is the leading choice for surface mount designs. The T491C106K016AT combines KEMET’s proven solid tantalum technology, acclaimed and respected throughout the world, with the latest in materials, processes and automation, resulting in unsurpassed total performance and value. Typical applications of the T491C106K016AT include decoupling and filtering in industrial and automotive end applications such as DC/DC converters, portable electronics, telecommunications, and control units.
Parametrics
T491C106K016AT absolute maximum ratings: (1)Operating Temperature: -55 to 125℃; (2)Rated Capacitance Range: 0.1 – 1,000 μF @ 120 Hz/25℃; (3)Capacitance Tolerance K Tolerance (10%), M Tolerance (20%); (4)Rated Voltage Range: 2.5 – 50 V; (5)DF (120 Hz): Refer to Part Number Electrical Specification Table; (6)ESR (100 kHz): Refer to Part Number Electrical Specification Table; (7)Leakage Current: ≤ 0.01 CV (μA) at Rated Voltage after 5 minutes.
Features
T491C106K016AT features: (1)Meets or Exceeds EIA Standard 535BAAC; (2)Taped and Reeled per EIA 481–D; (3)Symmetrical, Compliant Terminations; (4)Optical Gold-Plated Terminations; (5)Laser-marked Case; (6)100% Surge current test on C, D, E, U, V, X sizes; (7)Halogen Free Epoxy; (8)Capacitance 0.1 μF to 1,000 μF; (9)Tolerance ±10%, ±20%; (10)Voltage 2.5 – 50 VDC; (11)Extended Range Values; (12)Low Profile Case Sizes; (13)RoHS Compliant and Lead Free Terminations; (14)Operating Temperature: -55 to +125℃.

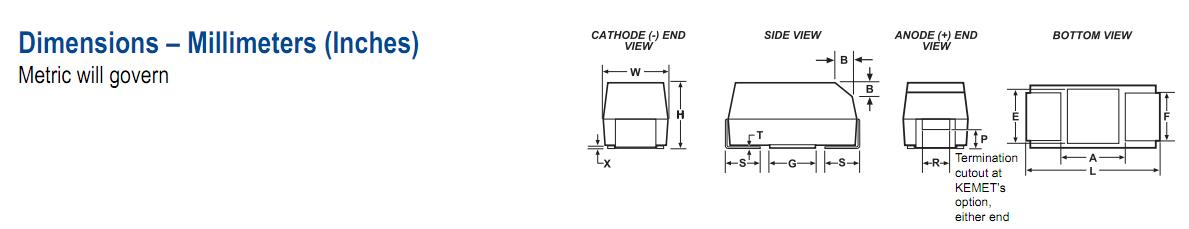

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 T491C106K016AT |
Kemet |
Tantalum Capacitors - Solid SMD 16V 10uF 10% "C" |
Data Sheet |
|
|
||||||||||||
|
T491C106K016AT7280 |
Kemet |
Tantalum Capacitors - Solid SMD 13" REEL |
Data Sheet |
|
|
||||||||||||
