Product Summary

The T520V226M020ATE040 is a conductive polymer chip capacitor.

Parametrics

T520V226M020ATE040 absolute maximum ratings: (1)Capacitance: 22μF; (2)Voltage - Rated: 20V; (3)Tolerance: ±20%; (4)Operating Temperature: -55 ~ 105℃; (5)ESR (Equivalent Series Resistance): 40.0 mOhm; (6)Mounting Type: Surface Mount; (7)Type: Molded; (8)Package / Case: 2917 (7343 Metric); (9)Packaging: Cut Tape (CT); (10)Lead Free Status: Lead Free; (11)RoHS Status: RoHS Compliant.

Features

T520V226M020ATE040 features: (1)Polymer Cathode Technology; (2)Low ESR; (3)High Frequency Cap Retention; (4)No-Ignition Failure Mode; (5)Use Up to 90% of Rated Voltage (10% Derating) for part types ≤ 10 Volts; (6)Halogen Free Epoxy; (7)100% Accelerated Steady State Aging; (8)Volumetrically Efficient; (9)Use Up to 80% of Rated Voltage (20% Derating) for part types > 10 Volts; (10)Capacitance 15 to 1000μF (±20%); (11)Voltage 2V to 25V; (12)EIA Standard Case Sizes; (13)100% Surge Current Tested; (14)Operating Temperature -55 to +105℃; (15)Self Healing Mechanism; (16)RoHS Compiant & Leadfree Terminations.

Diagrams

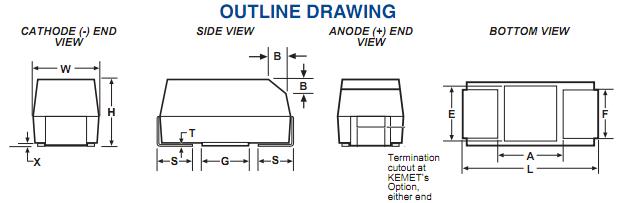

T520V226M020ATE040 outline drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T520V226M020ATE040
T520V226M020ATE040

Kemet

Tantalum Capacitors - Polymer SMD 20volts 22uF 20% ESR=40

Data Sheet

0-1: $2.34
1-10: $1.94
10-100: $1.62
100-500: $1.19
500-1000: $0.80
