Product Summary

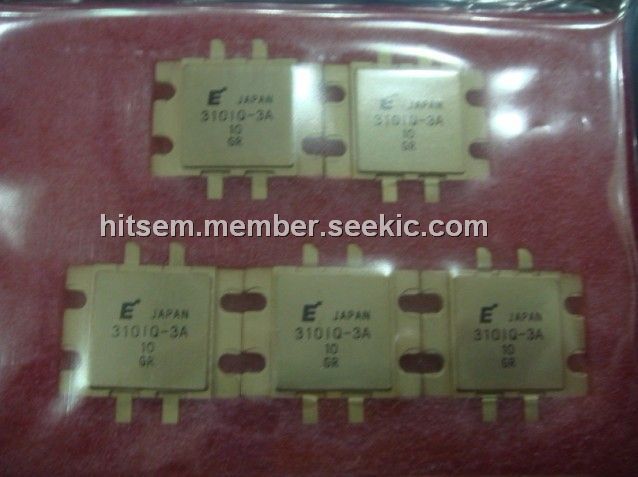

The FLL310IQ-3A is a 30 Watt GaAs FET that employs a push-pull design which offers excellent linearity, ease of matching, and greater consistency in covering the frequency band of 2.5 to 2.7GHz. The FLL310IQ-3A is ideally suited for use in MMDS design requirements as it offers high gain, long term reliability and ease of use.

Parametrics

FLL310IQ-3A absolute maximum ratings: (1)Drain-Source Voltage, VDS: 15V; (2)Gate-Source Voltage, VGS: -5V; (3)Total Power Dissipation, PTot: 107W; (4)Storage Temperature, Tstg: -65 to 175℃; (5)Channel Temperature, Tch: 175℃.

Features

FLL310IQ-3A features: (1)Push-Pull Configuration; (2)High Power Output:30W; (3)Excellent Linearity; (4)Suitable for class A and class AB operation; (5)High PAE:40%.

Diagrams

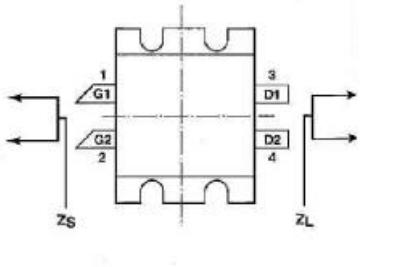

FLL310IQ-3A dimensions
