Product Summary

The MHW8185LR is a 24 Vdc Supply, 40 to 870 MHz, CATV Forward Power Doubler Amplifier. The applications of the MHW8185LR include: CATV Systems Operating in the 40 to 870 MHz Frequency Range, Output Stage Amplifier in Optical Nodes, Line Extenders and Trunk Distribution Amplifiers for CATV Systems, Driver Amplifier in Linear General Purpose Applications, Amplifiers Requiring Lower Power Dissipation While Maintaining Excellent Output Performance.

Parametrics

MHW8185LR absolute maximum ratings: (1)RF Voltage Input (Single Tone) Vin: +70 dBmV; (2)DC Supply Voltage VC:C +28 Vdc; (3)Operating Case Temperature Range TC: –20 to +100 ℃; (4)Storage Temperature Range Tstg: –40 to +100 ℃.

Features

MHW8185LR features: (1)Specified for 77- 110- and 128-Channel Loading; (2)Lower DC Current Requirements; (3)Excellent Distortion Performance; (4)Excellent DC Current Stability over Temperature; (5)Silicon Bipolar Transistor Technology; (6)Unconditionally Stable Under All Load Conditions.

Diagrams

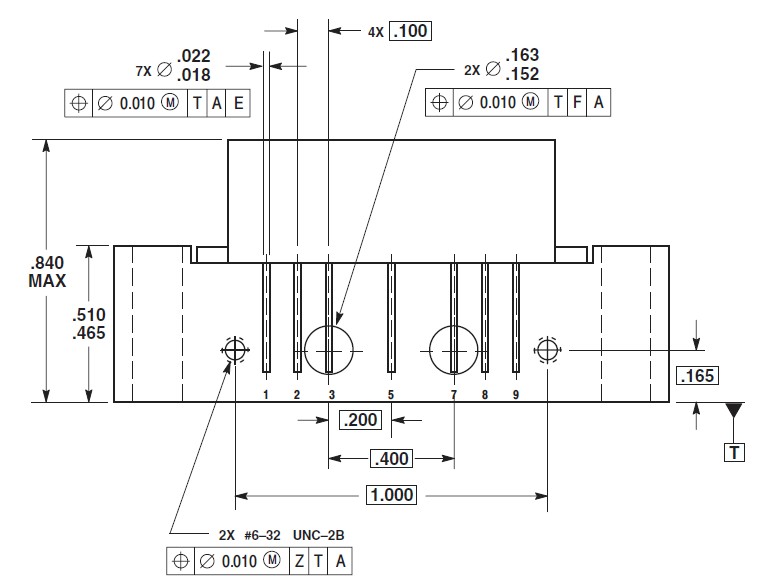

MHW8185LR dimensions
