Product Summary

The AD215BY is a high speed input isolation amplifier designed to isolate and amplify wide bandwidth analog signals. The applications of the AD215BY include High Speed Data Acquisition Systems, Power Line and Transient Monitors, Multichannel Muxed Input Isolation, Waveform Recording Instrumentation, Power Supply Controls and Vibration Analysis.

Parametrics

AD215BY absolute maximum ratings: (1)Input Voltage Rating:±10V; (2)Maximum Safe Differential Range:±15V; (3)CMRR of Input Op Amp:100dB; (4)Rated Performance temperature range:–40℃ to +85℃; (5)Storage temperature range:–40℃ to +85℃.

Features

AD215BY features: (1)Isolation Voltage Rating: 1,500 V rms; (2)Wide Bandwidth: 120 kHz, Full Power (–3 dB); (3)Rapid Slew Rate: 6 V/ms; (4)Fast Settling Time: 9 ms; (5)Low Harmonic Distortion: –80 dB @ 1 kHz; (6)Low Nonlinearity: ±0.005%; (7)Wide Output Range: ±10 V, min (Buffered); (8)Built-in Isolated Power Supply: ±15 V dc @ ±10 mA; (9)Performance Rated over –40℃ to +85℃.

Diagrams

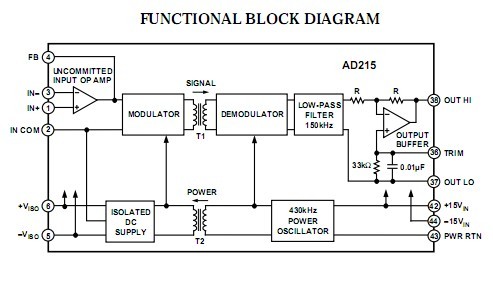

AD215BY functional block diagram

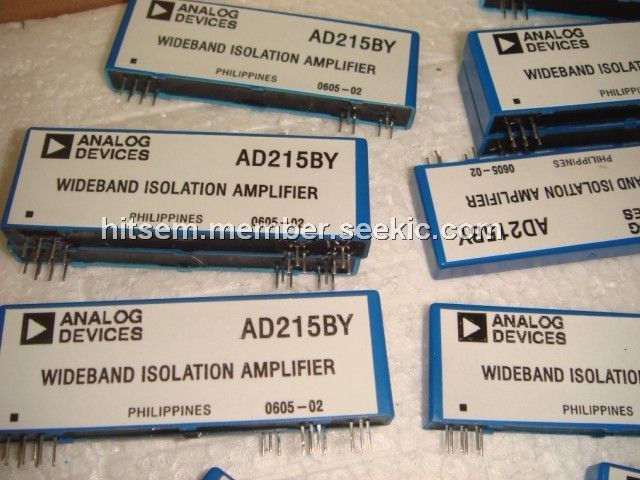

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD215BY
AD215BY

IC AMP ISOL LDIST 5MA 44SIP
Data Sheet
0-1: $47.76
1-10: $44.78
10-100: $40.30
100-250: $39.80
