Product Summary

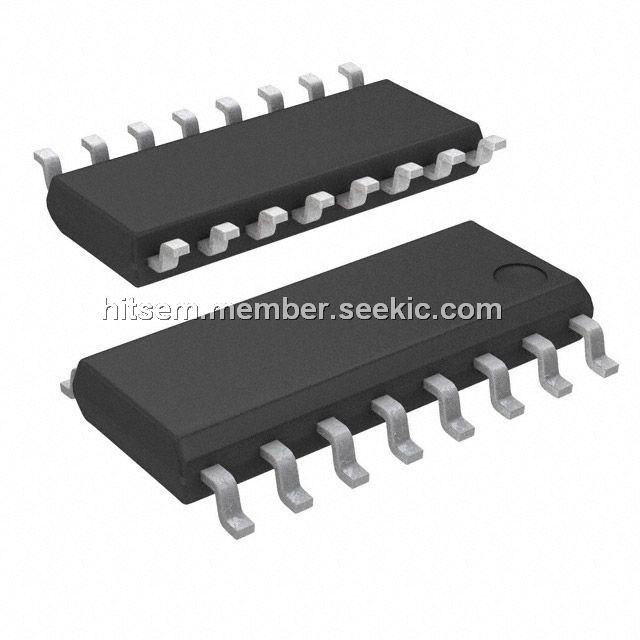

The SN74HC165DR is an 8-bit parallel-load shift register that, when clocked, shift the data toward a serial (QH) output. Parallel-in access to each stage is provided by eight individual direct data (A.H) inputs that are enabled by a low level at the shift/load (SH/LD) input. The SN74HC165DR also features a clock-inhibit (CLK INH) function and a complementary serial (QH) output.
Parametrics
SN74HC165DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74HC165DR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 13 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Complementary Outputs; (8)Direct Overriding Load (Data) Inputs; (9)Gated Clock Inputs; (10)Parallel-to-Serial Data Conversion.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC165DR |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Load |
Data Sheet |
|
|
||||||||||||
|
SN74HC165DRE4 |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Load Shift Register |
Data Sheet |
|
|
||||||||||||
|
SN74HC165DRG4 |
Texas Instruments |
Counter Shift Registers 8B Parallel Load Shift Registers |
Data Sheet |
|
|
||||||||||||
|
SN74HC165DRG3 |
Texas Instruments |
Registers 8B Parallel-Load Shift Registers |
Data Sheet |
|
|
||||||||||||
