Product Summary

The TPST226K010R0800 is a robust Mn02 solid electrolyte capacitor.

Parametrics

TPST226K010R0800 absolute maximum ratings: (1)Capacitance Range: 0.15 μF to 1500 μF; (2)Capacitance Tolerance: ±10%; ±20%; (3)Rated Voltage (VR) ≤ +85℃: 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50, 63; (4)Category Voltage (VC) ≤ +125℃: 1.7, 2.7, 4, 7, 10, 13, 17, 23, 33, 42; (5)Surge Voltage (VS) ≤ +85℃: 3.3, 5.2, 8, 13, 20, 26, 32, 46, 65, 82; (6)Surge Voltage (VS) ≤ +125℃: 2.2, 3.4, 5, 8, 13, 16, 20, 28, 40, 50; (7)Temperature Range: -55℃ to +125℃; (8)Environmental Classification: 55/125/56 (IEC 68-2); (9)Reliability: 1% per 1000 hours at 85℃, VR with 0.1Ω/V series impedance, 60% confidence level; (10)Termination Finished: Sn Plating (standard), Gold and SnPb Plating upon request.

Features

TPST226K010R0800 features: (1)Low ESR series of robust Mn02 solid electrolyte capacitors; (2)CV range: 0.15-1500μF / 2.5-50V; (3)14 case sizes available; (4)Power supply applications.

Diagrams

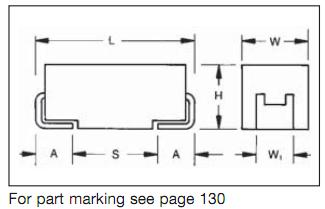

TPST226K010R0800 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPST226K010R0800
TPST226K010R0800

AVX

Tantalum Capacitors - Solid SMD 10V 22uF CASE T

Data Sheet

0-1560: $0.31
1560-2000: $0.24
2000-2500: $0.24
2500-4000: $0.24
