Product Summary

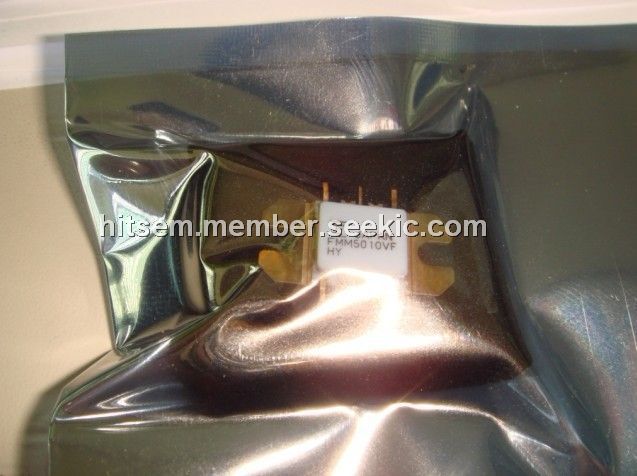

The FMM5010VF is a power amplifier designed for VSAT applications as a driver or output stage in the 14.0 to 14.5 GHz band. Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance.
Parametrics
FMM5010VF absolute maximum ratings: (1)DC Input Voltage, VDD: 12V; (2)DC Input Voltage, VGG: -7V; (3)Input Power, Pin: 5dBm; (4)Storage Temperature, Tstg: -55 to 125℃; (5)Operating Case Temperature, Top: -40 to 85℃.
Features
FMM5010VF features: (1)High Output Power: 21.0dBm (typ.); (2)High Linear Gain: 25dB (typ.); (3)Low In/Out VSWR; (4)Impedance Matched Zin/Zout = 50Ω; (5)Small Hermetic Metal-Ceramic Package (VF).
Diagrams
 |
