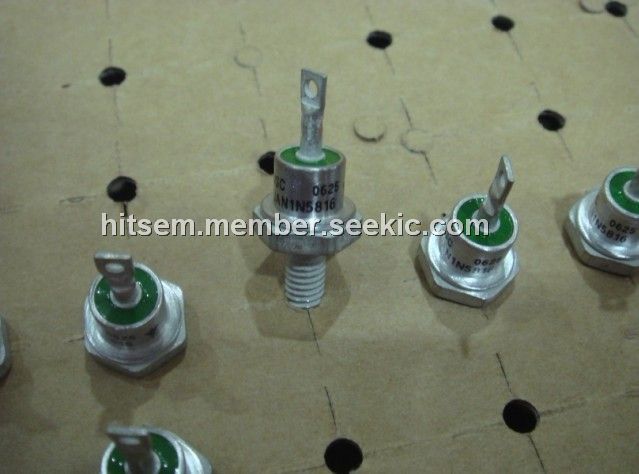

Product Summary

The JAN1N5816 is a high reliability ultra fast recovery rectifier.

Parametrics

JAN1N5816 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRWM: 150V; (2)Peak Working Reverse Voltage, VRRM: 150 V; (3)Average Forward Current, IF: 20 A; (4)Peak Surge Forward Current, IFSM: 400 A; (5)Thermal Resistance, Junction to Case, RθJC: 1.5℃/W; (6)Operating Junction Temperature Range, TJ: -65 to 175℃; (7)Storage Temperature Range, Tstg: -65 to 175℃.

Features

JAN1N5816 features: (1)175℃ Junction Temperature; (2)VRRM 50 to 150 Volts; (3)20 Amps Current Rating.

Diagrams

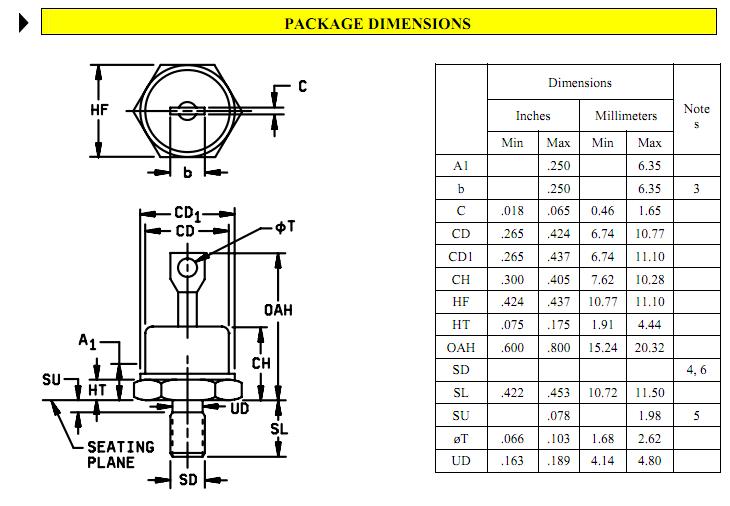

JAN1N5816 package dimensions
