Product Summary
The TMK432C476MM-T is a high value multilayer ceramic capacitor. The applications of the device include General digital circuit, Power supply bypass capacitors, Liquid crystal modules, Liquid crystal drive voltage lines, LS I, I C, converters(both for input and output) and Smoothing capacitors DC-DC converters (both for input and output) Switching power supplies (secondary side).
Parametrics
TMK432C476MM-T absolute maximum ratings: 1)Size-Height: 2.50 mm; (2)Capacitance: 47.0 μF; (3)Size-Width :3.20 mm; (4)Voltage Rating (DC): 25.0 V; (5)Lead-Free Status: Lead Free; (6)Packaging: Cut Tape (CT); (7)Size-Length: 4.50 mm; (8)Mounting Type: Surface Mount; (9)RoHS: Compliant.
Features
TMK432C476MM-T features: (1)The use of Nickel(Ni) as material for both the internal and external electrodes improves the solderability and heat resistance characteristics. This almost completely eliminates migration and raises the level of reliability significantly; (2)Low equivalent series resistance(ESR) provides excellent noise absorption characteristics; (3)Compared to tantalum or aluminum electrolytic capacitors these ceramic capacitors offer a number of excellent features, including: Higher permissible ripple current values Smaller case sizes relative to rated voltage Improved reliability due to higher insulation resistance and break- down voltage.

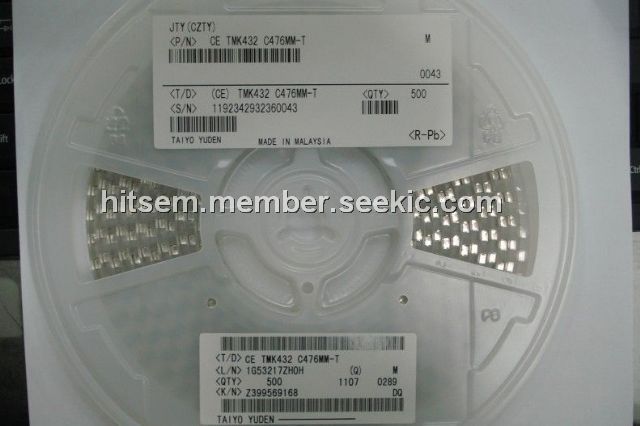

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMK432C476MM-T |
|
CAP CER 47UF 25V 20% X5S 1812 |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TMK432BJ106MM-T |
|
CAP CER 10UF 25V 20% X5R 1812 |
Data Sheet |
Negotiable |
|
||||
|
TMK432C226MM-T |
|
CAP CER 22UF 25V 20% X5S 1812 |
Data Sheet |
Negotiable |
|
||||
|
TMK432C476MM-T |
|
CAP CER 47UF 25V 20% X5S 1812 |
Data Sheet |
Negotiable |
|
||||
|
TMK432F475ZG-T |
|
CAP CER 4.7UF 25V Y5V 1812 |
Data Sheet |
Negotiable |
|
||||
|
TMK432BJ106KM-T |
|
CAP CER 10UF 25V 10% X5R 1812 |
Data Sheet |
Negotiable |
|
||||
