Product Summary
The TPSB225K035R2000 is a robust Mn02 solid electrolyte capacitor.
Parametrics
TPSB225K035R2000 absolute maximum ratings: (1)Capacitance Range: 0.15 μF to 1500 μF; (2)Capacitance Tolerance: ±10%; ±20%; (3)Rated Voltage (VR) ≤ +85℃: 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50, 63; (4)Category Voltage (VC) ≤ +125℃: 1.7, 2.7, 4, 7, 10, 13, 17, 23, 33, 42; (5)Surge Voltage (VS) ≤ +85℃: 3.3, 5.2, 8, 13, 20, 26, 32, 46, 65, 82; (6)Surge Voltage (VS) ≤ +125℃: 2.2, 3.4, 5, 8, 13, 16, 20, 28, 40, 50; (7)Temperature Range: -55℃ to +125℃; (8)Environmental Classification: 55/125/56 (IEC 68-2); (9)Reliability: 1% per 1000 hours at 85℃, VR with 0.1Ω/V series impedance, 60% confidence level; (10)Termination Finished: Sn Plating (standard), Gold and SnPb Plating upon request.
Features
TPSB225K035R2000 features: (1)Low ESR series of robust Mn02 solid electrolyte capacitors; (2)CV range: 0.15-1500μF / 2.5-50V; (3)14 case sizes available; (4)Power supply applications.

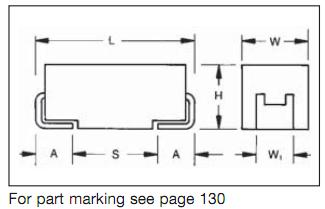

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

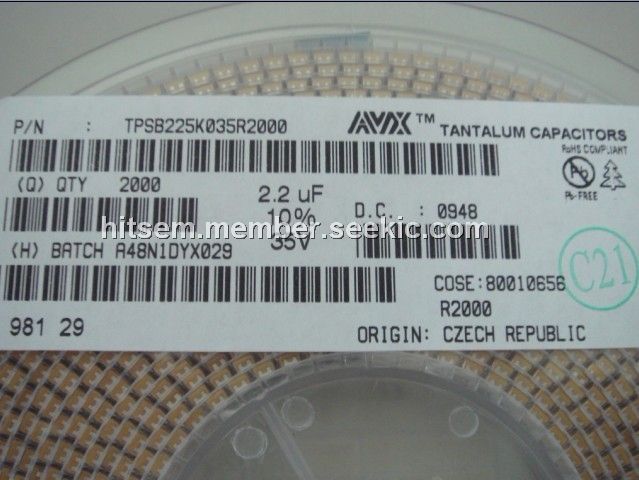

 TPSB225K035R2000 |
AVX |
Tantalum Capacitors - Solid SMD 2.2UF 35V 3528-21 |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
TPSB105K035H2000 |
AVX |
Tantalum Capacitors - Solid SMD 1.0UF 35V 10% B |
Data Sheet |
|
|
||||||||||||
|
TPSB105K035R2000 |
AVX |
Tantalum Capacitors - Solid SMD 1.0UF 35V 10% B |
Data Sheet |
|
|
||||||||||||
|
TPSB105M035R2000 |
AVX |
Tantalum Capacitors - Solid SMD 35V 1uF 20% Tol. 2000 ESR |
Data Sheet |
|
|
||||||||||||
|
TPSB106K016A0500 |
AVX |
Tantalum Capacitors - Solid SMD 16volts 10uF 10% |
Data Sheet |
|
|
||||||||||||
|
TPSB106K016A0800 |
AVX |
Tantalum Capacitors - Solid SMD 16volts 10uF 10% |
Data Sheet |
|
|
||||||||||||
|
TPSB106K016H0500 |
AVX |
Tantalum Capacitors - Solid SMD 16volts 10uF 10% |
Data Sheet |
|
|
||||||||||||
